40L drone agricultural sprayer

Basic specs:
-40 liter tank capacaity
-12 pressure nozzles, spray width 8-10m.
-Uses one smart battery to work, lifetime is more than 600 cycles.
-Cover 2.2 hectares in 10 minutes on each flight.
-Charging one battery takes approximately 25 minutes.
-A non-stop continuous work kit can cover 12-15 hectares per hour.
Availability:
Quantity:
sharethis sharing button
  • JT40L-404

  • JOYANCE

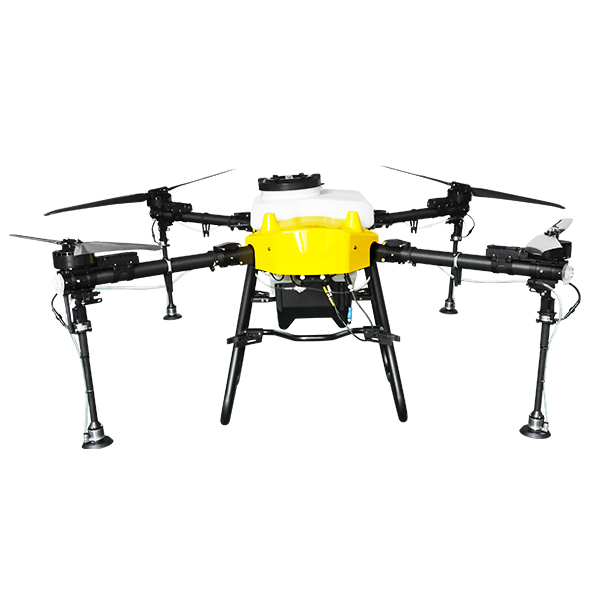

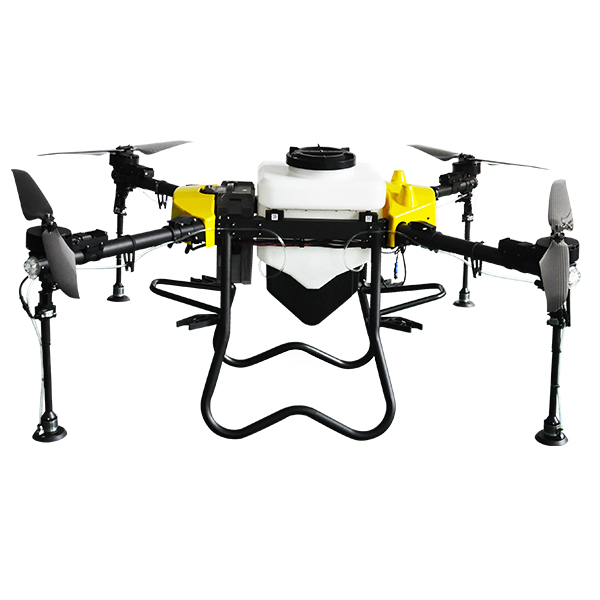

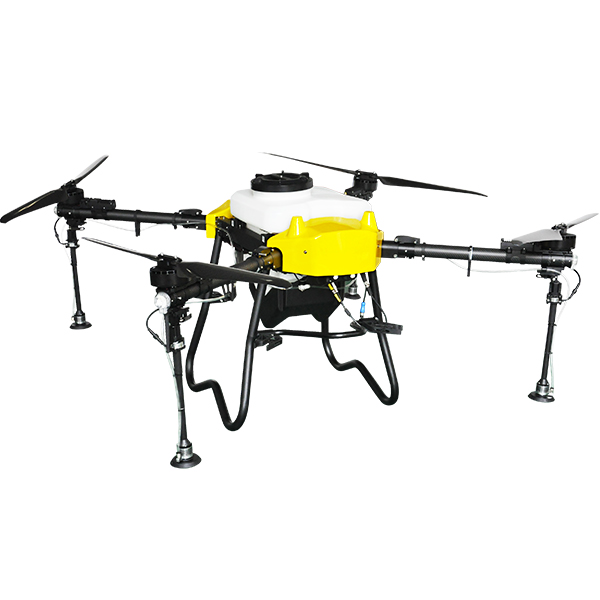

JT40L-404 drone sprayer



40L sprayer tank

Spraying: 16-18 hectares per hour

70L spreading tank

Max spreading speed: 80kgs/min



4pcs centrifugal nozzles spraying span 10-12m

Accurate ultrasonic flow meter

Precise weighing module

Front and rear camera

Front and rear obstacles avoidance radar

Terrain following radar

RTK antenna





Model JT40L-404
Pesticide Tank 40L
Net Weight 48 kg
Take-off Weight 88 kg
Flying Time 10~12min
Flying Radius 0~1000m
Flying Height 0~30m
Flying Speed 0~10m/s
Work Temperature -10~70°C
Work Humidity 0~90%
Spray Speed 0~8m/s
Spray Width/Nozzle No. >10~12m / 4 Centrifugal Nozzles
Spray Flow MAX 12L/min
Spray Efficiency 16~18Ha/Hr
Flying Downward Airflow 4~15m/s
Wind Resistance 20m/s
Machine Size Unfold: W1.52m x L0.67m x H0.93m
Fold: L1.05m x W0.67m x H0.93m
Power System FOC X11 MAX
Flight Control JIYI K++ V2
Remote Controller  H12 RC with 5.5″ screen app
Battery / Quantity 18S 30000mAh / 1pc
Pump Doule brushless pump
Adapter + Charger Dual-Channel Charger 7200W
Packing Case Aluminum Case
Toolkit Maintenance/Repair Tools
Terrain following radar Terrain following
Obstacles avoiding sensor Front and back sensor
FPV Camera with night light
Spreader tank scattering grass seeds, sowing seeds,feeding , fertilizer, deicing agent, etc
